Compiling VisIt with spack often leads to a bug combining expressions and operator

[cessenat]

Describe the bug

When I compile VisIt with spack, on many systems, VisIt suffers a bug when
combining expressions and operator

Helpful additional information

• The Viewer did not show anything
• engine_ser crashed

To Reproduce

Steps to reproduce the behavior. For example:

1. File open ucd3d.silo
2. Add / Pseudocolor / vel_magnitude
3. Operator / Slicing / Three Slice / Draw
4. The Pseudocolor plot of "vel_magnitude" for the file "/opt/visit/data/ucd3d.silo" could not be generated by the compute engine on host "localhost".

Additionally, please attach a (zipped) sessionfile to this ticket to easily reproduce (In the viewer, use File->Save Session).
exprand3slice.session.gz

Expected behavior

Draw does not show up

Attachments

• Can you reproduce the bug on our test data? Yes
  • If so, which file? ucd3d.silo
• Please attach a (zipped) sessionfile to easily reproduce (In the viewer, use File->Save Session).

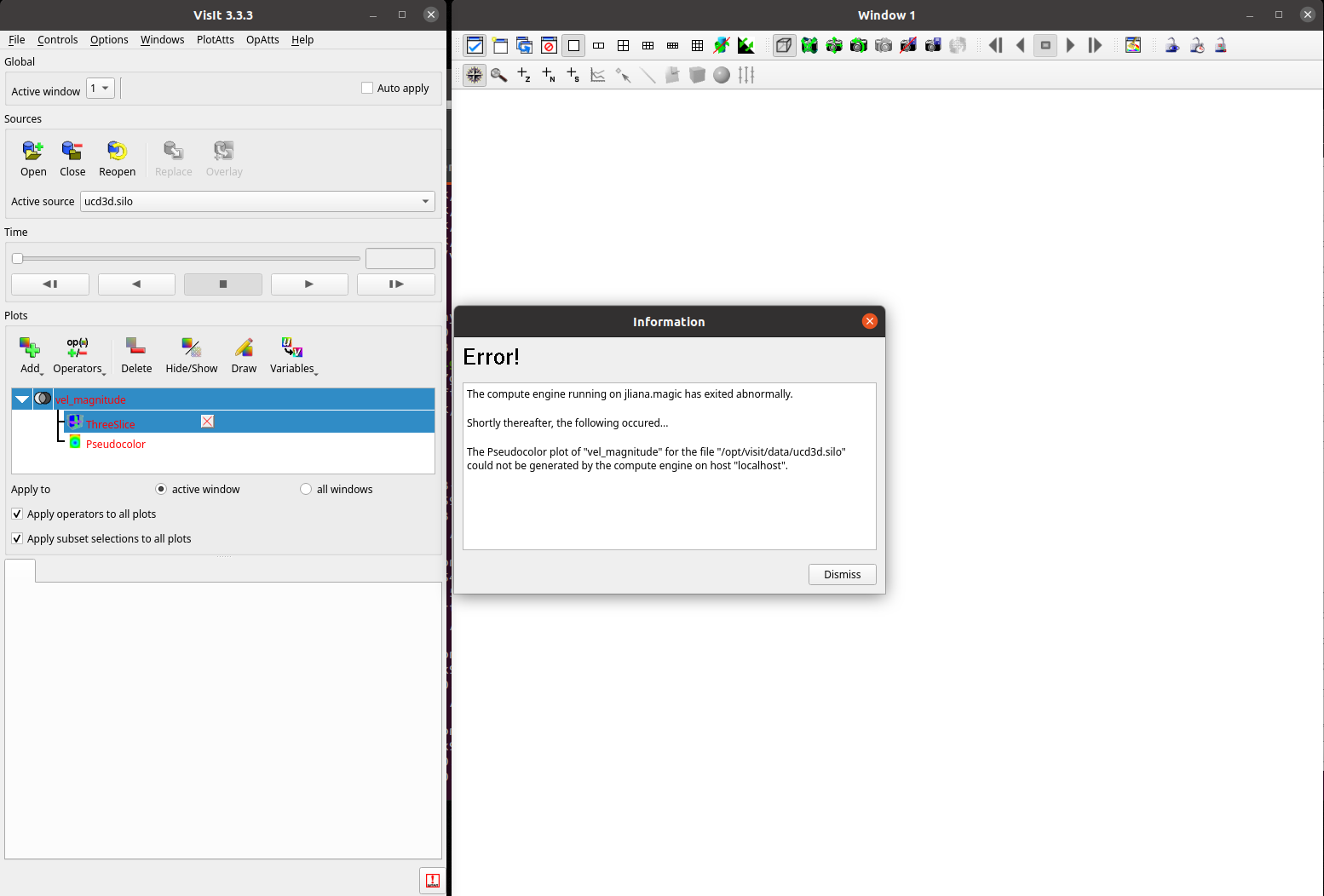

• Please attach any screenshots relevant to understanding the issue.


Desktop

• Ubuntu 20.04, but many other systems, only one on CentOS7 did not fail.
• VisIt Version: 3.2.2 and 3.3.3, at least

Additional context

using spack:

spack install visit%gcc+mpi+gui ^python@3.7.7+shared ^mesa@21.2.5+opengl ^vtk@8.1.0
spack install visit@3.3.3 %gcc ^python@3.9.6+shared ^silo@4.11 ^mpich ^openblas ^mesa+opengl ^qt~doc

[cessenat]

This is the engine server that fails.
Here is what happens when I make a movie with the following session files:
movie.session:

AddPlot("Pseudocolor", "u", 1, 1)
AddOperator("ThreeSlice", 1)
DrawPlots()

movieOK.session:

AddPlot("Pseudocolor", "vel_magnitude", 1, 1)
DrawPlots()

movieKO.session:

AddPlot("Pseudocolor", "vel_magnitude", 1, 1)
AddOperator("ThreeSlice", 1)
DrawPlots()

And below is the output for movieKO and movie OK on the command line:

$ /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/bin/visit -movie -v 3.3.3 -format png -geometry 1023x946 -output /tmp/movieKO -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieKO.session -lang en
Running: cli3.3.3 -forceversion 3.3.3 -nowin -s /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/bin/makemoviemain.py -format png -geometry 1023x946 -output /tmp/movieKO -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieKO.session -lang en
Running: viewer3.3.3 -nowin -forceversion 3.3.3 -noint -format png -geometry 1023x946 -output /tmp/movieKO -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieKO.session -lang en -host 127.0.0.1 -port 5600

ERROR: We could not parse the session file for engine
launch parameters.  This will cause problems getting
the right type of engine launched.  Please report this.

Running: mdserver3.3.3 -forceversion 3.3.3 -format png -output /tmp/movieKO -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieKO.session -lang en -host 127.0.0.1 -port 5600
VisIt: Message - VisIt imported a session from: /tmp/movieKO.session.
Running: engine_ser3.3.3 -forceversion 3.3.3 -format png -output /tmp/movieKO -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieKO.session -lang en -host 127.0.0.1 -port 5600
VisIt: Error - The compute engine running on jliana.magic has exited abnormally.
VisIt: Error - The Pseudocolor plot of "vel_magnitude" for the file "/opt/visit/data/ucd3d.silo" could not be generated by the compute engine on host "localhost".
Running: engine_ser3.3.3 -forceversion 3.3.3 -idle-timeout 480 -format png -output /tmp/movieKO -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieKO.session -lang en -host 127.0.0.1 -port 5600
VisIt: Error - The compute engine running on jliana.magic has exited abnormally.
VisIt: Error - The Pseudocolor plot of "vel_magnitude" for the file "/opt/visit/data/ucd3d.silo" could not be generated by the compute engine on host "localhost".
SetTimeSliderState was called when there was no time slider.
VisIt: Message - Rendering window 1...
VisIt: Error - No image was saved. The combination of pixel data flags resulted in no image.
There was an error when trying to save the window for time slider state 0. VisIt will now try to redraw the plots and re-save the window.
Running: engine_ser3.3.3 -forceversion 3.3.3 -idle-timeout 480 -format png -output /tmp/movieKO -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieKO.session -lang en -host 127.0.0.1 -port 5600
VisIt: Error - The compute engine running on jliana.magic has exited abnormally.
VisIt: Error - The Pseudocolor plot of "vel_magnitude" for the file "/opt/visit/data/ucd3d.silo" could not be generated by the compute engine on host "localhost".
VisIt could not draw plots for time slider state 0. You should investigate the files used for that state.
VisIt completed generating frames. They are located at:
/tmp.
$ /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/bin/visit -movie -v 3.3.3 -format png -geometry 1023x946 -output /tmp/movieOK -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieOK.session -lang en
Running: cli3.3.3 -forceversion 3.3.3 -nowin -s /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/bin/makemoviemain.py -format png -geometry 1023x946 -output /tmp/movieOK -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieOK.session -lang en
Running: viewer3.3.3 -nowin -forceversion 3.3.3 -noint -format png -geometry 1023x946 -output /tmp/movieOK -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieOK.session -lang en -host 127.0.0.1 -port 5600

ERROR: We could not parse the session file for engine
launch parameters.  This will cause problems getting
the right type of engine launched.  Please report this.

Running: mdserver3.3.3 -forceversion 3.3.3 -format png -output /tmp/movieOK -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieOK.session -lang en -host 127.0.0.1 -port 5600
VisIt: Message - VisIt imported a session from: /tmp/movieOK.session.
Running: engine_ser3.3.3 -forceversion 3.3.3 -format png -output /tmp/movieOK -fps 10 -start 0 -end 0 -frame 0 -sessionfile /tmp/movieOK.session -lang en -host 127.0.0.1 -port 5600
SetTimeSliderState was called when there was no time slider.
VisIt: Message - Rendering window 1...
VisIt: Message - Saving window 1...
VisIt: Message - Saved /tmp/movieOK0000.png
VisIt completed generating frames. They are located at:
/tmp.

Below are the session files:
movie.session.gz
movieOK.session.gz
movieKO.session.gz

[cessenat]

Here is an ldd for engine_ser, just in case

$ ldd /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libengine_ser.so
	linux-vdso.so.1 (0x00007fff4bd45000)
	libenginerpc.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libenginerpc.so (0x00007f19e9439000)
	libavtwriter_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtwriter_ser.so (0x00007f19e940a000)
	libavtquery_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtquery_ser.so (0x00007f19e9228000)
	libavtviswindow_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtviswindow_ser.so (0x00007f19e911e000)
	libmfem.so.4.5.2 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/mfem-4.5.2-3btlghsbdz4bqvp74rvvrwhfmzhjhbeg/lib/libmfem.so.4.5.2 (0x00007f19e8078000)
	libavtblueprint.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtblueprint.so (0x00007f19e8045000)
	libavtexpressions_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtexpressions_ser.so (0x00007f19e7767000)
	libavtdbin_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtdbin_ser.so (0x00007f19e774a000)
	libavtplotter_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtplotter_ser.so (0x00007f19e751a000)
	libavtfilters_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtfilters_ser.so (0x00007f19e732a000)
	libavtview.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtview.so (0x00007f19e7318000)
	libX11.so.6 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libx11-1.7.0-u7ggurla3bw7dp637c5cmffrs43ixpk6/lib/libX11.so.6 (0x00007f19e71cf000)
	libavtdatabase_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtdatabase_ser.so (0x00007f19e70a6000)
	libavtpipeline_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtpipeline_ser.so (0x00007f19e6f08000)
	libavtdbatts.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtdbatts.so (0x00007f19e6e5f000)
	libvisit_vtk.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libvisit_vtk.so (0x00007f19e6d1e000)
	liblightweight_visit_vtk.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/liblightweight_visit_vtk.so (0x00007f19e6c9d000)
	libvisitcommon.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libvisitcommon.so (0x00007f19e683c000)
	libvtkFiltersCore-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkFiltersCore-8.1.so.1 (0x00007f19e63f9000)
	libvtkCommonExecutionModel-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonExecutionModel-8.1.so.1 (0x00007f19e633d000)
	libvtkCommonDataModel-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonDataModel-8.1.so.1 (0x00007f19e5fa3000)
	libvtkCommonCore-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonCore-8.1.so.1 (0x00007f19e5bf1000)
	libpthread.so.0 => /lib/x86_64-linux-gnu/libpthread.so.0 (0x00007f19e5bce000)
	libstdc++.so.6 => /lib/x86_64-linux-gnu/libstdc++.so.6 (0x00007f19e59ec000)
	libgcc_s.so.1 => /lib/x86_64-linux-gnu/libgcc_s.so.1 (0x00007f19e59d1000)
	libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007f19e57df000)
	libvtkIOPLY-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkIOPLY-8.1.so.1 (0x00007f19e57bb000)
	libvtkIOImage-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkIOImage-8.1.so.1 (0x00007f19e5646000)
	libvtkIOLegacy-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkIOLegacy-8.1.so.1 (0x00007f19e559a000)
	libvtkImagingCore-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkImagingCore-8.1.so.1 (0x00007f19e53e7000)
	libvtkRenderingCore-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkRenderingCore-8.1.so.1 (0x00007f19e51d5000)
	libvtkFiltersGeometry-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkFiltersGeometry-8.1.so.1 (0x00007f19e5156000)
	libvtkIOCore-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkIOCore-8.1.so.1 (0x00007f19e50e6000)
	libm.so.6 => /lib/x86_64-linux-gnu/libm.so.6 (0x00007f19e4f97000)
	libavtshapelets.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtshapelets.so (0x00007f19e4f81000)
	librt.so.1 => /lib/x86_64-linux-gnu/librt.so.1 (0x00007f19e4f77000)
	libavtpythonfilters_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtpythonfilters_ser.so (0x00007f19e4f51000)
	libconduit.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/conduit-0.8.7-fn4uuifn5em6hmc5mtypfxp5tvtcn7mc/lib/libconduit.so (0x00007f19e4d78000)
	libconduit_relay.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/conduit-0.8.7-fn4uuifn5em6hmc5mtypfxp5tvtcn7mc/lib/libconduit_relay.so (0x00007f19e4ca0000)
	libconduit_blueprint.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/conduit-0.8.7-fn4uuifn5em6hmc5mtypfxp5tvtcn7mc/lib/libconduit_blueprint.so (0x00007f19e49af000)
	libpython3.7m.so.1.0 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/python-3.7.7-ahitfnhjeoumsdb3ssvrex2rm6vn55me/lib/libpython3.7m.so.1.0 (0x00007f19e4654000)
	libavtmath.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtmath.so (0x00007f19e4642000)
	libvtkInteractionStyle-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkInteractionStyle-8.1.so.1 (0x00007f19e45e4000)
	libvtkRenderingOpenGL2-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkRenderingOpenGL2-8.1.so.1 (0x00007f19e43ff000)
	libvtkRenderingFreeType-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkRenderingFreeType-8.1.so.1 (0x00007f19e434c000)
	libvtkFiltersModeling-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkFiltersModeling-8.1.so.1 (0x00007f19e42d8000)
	libvtkFiltersSources-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkFiltersSources-8.1.so.1 (0x00007f19e422d000)
	libvtkCommonMath-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonMath-8.1.so.1 (0x00007f19e4208000)
	libGL.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/mesa-21.2.5-nl2l267tpx4pkey6xnbkwnnruo24baac/lib/libGL.so.1 (0x00007f19e2ec0000)
	libHYPRE-2.25.0.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/hypre-2.25.0-gqyeukaf7ph46lkjubpjwsxpsxc3swrf/lib/libHYPRE-2.25.0.so (0x00007f19e2b47000)
	libmetis.so.5 => /lib/x86_64-linux-gnu/libmetis.so.5 (0x00007f19e28d9000)
	libfms.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libfms-0.2.0-y5632g2fafmwn7idctsmzufm2vnmx4bs/lib/libfms.so (0x00007f19e28b8000)
	libz.so.1 => /lib/x86_64-linux-gnu/libz.so.1 (0x00007f19e289c000)
	libmpich.so.12 => /lib/x86_64-linux-gnu/libmpich.so.12 (0x00007f19e254d000)
	libvisit_verdict.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libvisit_verdict.so (0x00007f19e2519000)
	libvtkFiltersGeneral-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkFiltersGeneral-8.1.so.1 (0x00007f19e22b4000)
	libvtkFiltersHybrid-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkFiltersHybrid-8.1.so.1 (0x00007f19e21d5000)
	libvtkCommonTransforms-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonTransforms-8.1.so.1 (0x00007f19e21a4000)
	libxcb.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libxcb-1.14-tv2yfflnv52wril6quupugnolopiwzue/lib/libxcb.so.1 (0x00007f19e2175000)
	libdl.so.2 => /lib/x86_64-linux-gnu/libdl.so.2 (0x00007f19e216f000)
	libavtmir_ser.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libavtmir_ser.so (0x00007f19e210f000)
	libtess2.so => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/visit-3.3.3-nwi2azogkzyntk7gtigqg4fefndmrjng/3.3.3/linux-x86_64/lib/libtess2.so (0x00007f19e20fd000)
	libvtkImagingHybrid-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkImagingHybrid-8.1.so.1 (0x00007f19e2087000)
	libvtkCommonMisc-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonMisc-8.1.so.1 (0x00007f19e2069000)
	libvtkCommonSystem-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonSystem-8.1.so.1 (0x00007f19e2047000)
	libvtksys-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtksys-8.1.so.1 (0x00007f19e1ff0000)
	/lib64/ld-linux-x86-64.so.2 (0x00007f19e954f000)
	libvtkDICOMParser-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkDICOMParser-8.1.so.1 (0x00007f19e1fcc000)
	libvtkmetaio-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkmetaio-8.1.so.1 (0x00007f19e1f28000)
	libjpeg.so.62 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libjpeg-turbo-2.1.3-a4jwf5qriyehbvhumdwipa44obkvxx3a/lib/libjpeg.so.62 (0x00007f19e1e7e000)
	libpng16.so.16 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libpng-1.6.37-xkzko77b3kg4lelb2ple4mukvh7mjpfw/lib/libpng16.so.16 (0x00007f19e1e45000)
	libtiff.so.5 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libtiff-4.4.0-2dhqgsx7wng7hdr3opfr23shf3ucp3sh/lib/libtiff.so.5 (0x00007f19e1dcb000)
	libvtkCommonColor-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonColor-8.1.so.1 (0x00007f19e1da5000)
	libvtkCommonComputationalGeometry-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkCommonComputationalGeometry-8.1.so.1 (0x00007f19e1d6a000)
	liblz4.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/lz4-1.9.4-xu42vs4sxjl2buymmxyg74uqezj6bbwn/lib/liblz4.so.1 (0x00007f19e1d32000)
	libgfortran.so.5 => /lib/x86_64-linux-gnu/libgfortran.so.5 (0x00007f19e1a68000)
	libhdf5.so.10 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/hdf5-1.8.22-7bzscddmxcjwktdv5s7em5ih7fkrp6xe/lib/libhdf5.so.10 (0x00007f19e179b000)
	libintl.so.8 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/gettext-0.21.1-hbxovlpsvuu3k2krrogm5sbvisvta5mv/lib/libintl.so.8 (0x00007f19e178c000)
	libutil.so.1 => /lib/x86_64-linux-gnu/libutil.so.1 (0x00007f19e1787000)
	libvtkFiltersExtraction-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkFiltersExtraction-8.1.so.1 (0x00007f19e16a2000)
	libvtkglew-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkglew-8.1.so.1 (0x00007f19e160f000)
	libXt.so.6 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libxt-1.1.5-4bzvf442aigo243tfkeiqnpjorhrtj4f/lib/libXt.so.6 (0x00007f19e15a0000)
	libfreetype.so.6 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/freetype-2.10.2-fzvlqgfagszwpca2qrue7bevdnjjrrpd/lib/libfreetype.so.6 (0x00007f19e14e2000)
	libglapi.so.0 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/mesa-21.2.5-nl2l267tpx4pkey6xnbkwnnruo24baac/lib/libglapi.so.0 (0x00007f19e14a5000)
	libLLVM-10.so.1 => /lib/x86_64-linux-gnu/libLLVM-10.so.1 (0x00007f19dce11000)
	libXext.so.6 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libxext-1.3.3-vetyow6gguatj2ck54qmvqxqwcxp5ubx/lib/libXext.so.6 (0x00007f19dcdfc000)
	libzstd.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/zstd-1.5.2-x4q5lciqqonfawkkedyvu5drupkqm7cz/lib/libzstd.so.1 (0x00007f19dcd14000)
	libmkl_intel_lp64.so => /opt/intel/compilers_and_libraries_2020.4.304/linux/mkl/lib/intel64/libmkl_intel_lp64.so (0x00007f19dbff4000)
	libmkl_sequential.so => /opt/intel/compilers_and_libraries_2020.4.304/linux/mkl/lib/intel64/libmkl_sequential.so (0x00007f19da3dd000)
	libmkl_core.so => /opt/intel/compilers_and_libraries_2020.4.304/linux/mkl/lib/intel64/libmkl_core.so (0x00007f19d5d9c000)
	libvtkImagingSources-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkImagingSources-8.1.so.1 (0x00007f19d5d54000)
	libXau.so.6 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libxau-1.0.8-ftohh5nsviqfbdl2ojr3l5p7hw3noq72/lib/libXau.so.6 (0x00007f19d5d4e000)
	libXdmcp.so.6 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libxdmcp-1.1.2-rhg4oyk2w2agopyo64yfizpmv5e6guo3/lib/libXdmcp.so.6 (0x00007f19d5d44000)
	libquadmath.so.0 => /lib/x86_64-linux-gnu/libquadmath.so.0 (0x00007f19d5cfa000)
	libiconv.so.2 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libiconv-1.16-rnz2ml7kemkk4loht5phoqy6ytfnr2up/lib/libiconv.so.2 (0x00007f19d5bfa000)
	libvtkFiltersStatistics-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkFiltersStatistics-8.1.so.1 (0x00007f19d5b65000)
	libSM.so.6 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libsm-1.2.3-6shpxfeoqyy6t637darad52aolmbrrnb/lib/libSM.so.6 (0x00007f19d5b58000)
	libICE.so.6 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libice-1.0.9-w6jkuob4s3qye6vbmnhg7pzq4altsqkt/lib/libICE.so.6 (0x00007f19d5b38000)
	libbz2.so.1.0 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/bzip2-1.0.8-7uhnadr72eyoj4v4wj4jzhbhn3tczmfs/lib/libbz2.so.1.0 (0x00007f19d5b23000)
	libffi.so.7 => /usr/lib/x86_64-linux-gnu/libffi.so.7 (0x00007f19d5b17000)
	libedit.so.2 => /usr/lib/x86_64-linux-gnu/libedit.so.2 (0x00007f19d5adf000)
	libtinfo.so.6 => /usr/lib/x86_64-linux-gnu/libtinfo.so.6 (0x00007f19d5aad000)
	libbsd.so.0 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libbsd-0.11.5-mmkxmpvvoj2jlooeptwmwmper5zdpc43/lib/libbsd.so.0 (0x00007f19d5a95000)
	libvtkalglib-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkalglib-8.1.so.1 (0x00007f19d5a66000)
	libvtkImagingFourier-8.1.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/vtk-8.1.0-p7nyu4pe3kfeyk7p2wsx23m44zhp5hld/lib/libvtkImagingFourier-8.1.so.1 (0x00007f19d5a3a000)
	libuuid.so.1 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/util-linux-uuid-2.37.4-y547gnrllbpmoui5q3m5pvv6gb3bbo2i/lib/libuuid.so.1 (0x00007f19d5a2f000)
	libmd.so.0 => /opt/spack/linux-ubuntu20.04-zen2/gcc-9.3.0/libmd-1.0.4-x5qixfnrk3npbxrmguxkwiwqhlmjfk4l/lib/libmd.so.0 (0x00007f19d5a21000)

[cessenat]

And below are the vlog files - those below were made on Ubuntu 22.04 by
spack install visit@3.3.3 %gcc ^python@3.9.6+shared ^silo@4.11 ^mpich ^openblas ^mesa+opengl ^qt~doc
A.engine_ser.5.vlog.gz
A.gui.5.vlog.gz
A.mdserver.5.vlog.gz
A.viewer.5.vlog.gz
